Specifications

hydraulic hose crimping machine
1. stable performance
2. high quality and factory price
3. with a long servie life

FOR-68 Hydraulic high pressure hose crimping machine

Model FOR-68 Hydraulic high pressure hose crimping machine is mainly used for buckling processing for high pressure rubber pipe assembly in the mechanical engineering. It can also be used for buckling the two-way bends, especially large bends and irregular shape bends.

This machine features small and portable appearance, big force, low noise and easy to operate. The buckling amount can be precise adjusted through a scale. It makes the mould base division to be more even through the double inclined plane eight-flap mould seat equipped with a high accuracy guiding device.

Feature:

1.small and portable appearance

2.big force and low noise

3.easy to operate.

Main technical character:

Crimping range(hose ID):Φ1/4-2 inches 6-51mm

Max swage force:400T

Swage accuracy:0.02mm

Rated pressure:31.5Mpa

Oil pump out-let quantity:5ml/rad(380V) 2.5ml/rad (220V)

Dimension:670*490*780mm

Weight:200kgs

It also named as hose crimper,Pipe locking machine,hose swaging machine,hose swager,Locking pipe machine,tube locking machine, tube crimping machine,tube crimper,pipe crimping machine,pipe crimper.

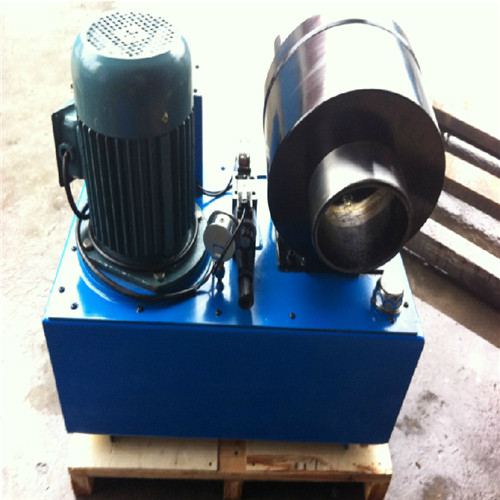

Photo of our popular type hose crimping machine:

FOR-68 Hydraulic high pressure hose crimping machine 6-51mm
