| Ask Lasest Price | |
| Brand Name : | FOR |
| Certification : | ISO 9001：2008 |
| Model Number : | mining air hose |
| Price : | 0.67 USD per meter |
| Delivery Time : | 10 days buyer pay the money |
| Payment Terms : | T/T, L/C, West Union, Paypal ect |
| Supply Ability : | 1000 meter per day |

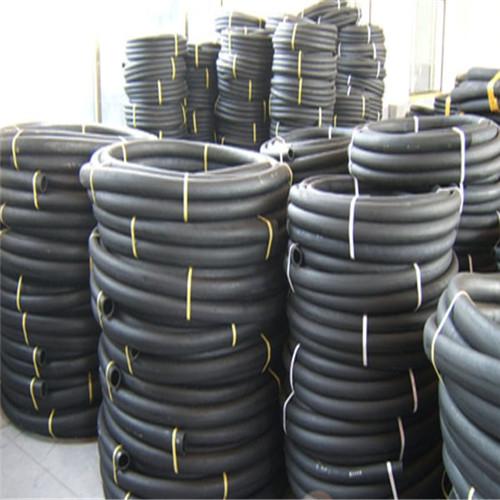

rubber mining air hose
1.low working pressure
2.OEM is OK
3.for compressed air
4.factory price
High quality professional rubber mining air hose
Knitted air hose with low working pressure:
Item | Compressed Air Hose |
Inner Tube: | NR & SBR synthetic rubber, black color, smooth and braided |
Reinforcement: | textile braided high tensile synthetic yarn |
Cover: | EPDM/SBR blended,black, red or yellow, etc. Weather and ozone resistant. |
Temperature: | -25°C---+70°C |
Brand logo: | as your request |
Application: | wide range service in general industrial services, mobiles shop pneumatic tools, air tools. Etc. |
Length: | 100meters, 50meters, 20meters. |
Packing: | PP FILMS, woven strip, etc. |
| DN(mm) | Working Pressure Mpa(kgf/cm²) | Reference O.D. (mm) | Reference Weight (kg/m) | Length | ||||||||
| 0.59(6) | 0.78(8) | 0.98(10) | ||||||||||
| Size | Tolerance | Fabric Layers | m | Tolerance(mm) | ||||||||
| 13 | ±0.8 | 2 | 3 | 4 | 22 | 23 | 24 | 0.37 | 0.41 | 0.45 | 20 | ±200 |
| 16 | ±0.8 | 3 | 4 | 5 | 26 | 27 | 28 | 0.48 | 0.53 | 0.58 | ||
| 19 | ±0.8 | 3 | 4 | 5 | 29 | 30 | 31 | 0.57 | 0.63 | 0.7 | ||
| 22 | ±0.8 | 2 | 3 | 4 | 32 | 33 | 34 | 0.59 | 0.66 | 0.73 | ||
| 25 | ±0.8 | 3 | 4 | 5 | 37 | 39 | 40 | 0.84 | 0.91 | 1 | ||
| 32 | ±1.2 | 3 | 4 | 5 | 44 | 46 | 47 | 1 | 1.1 | 1.2 | ||
| 38 | ±1.2 | 3 | 4 | 5 | 50 | 51 | 52 | 1.3 | 1.4 | 1.6 | ||
| 45 | ±1.2 | 3 | 4 | 5 | 57 | 58 | 59 | 1.5 | 1.7 | 1.8 | ||
| 51 | ±1.2 | 3 | 4 | 5 | 63 | 64 | 65 | 1.7 | 1.8 | 2.2 | ||
| 64 | ±1.5 | 4 | 5 | 6 | 77 | 78 | 80 | 2.3 | 2.5 | 2.7 | ||
| 76 | ±1.5 | 4 | 6 | 7 | 90 | 91 | 93 | 2.6 | 3.2 | 3.5 | ||
| 89 | ±1.5 | 5 | 7 | 9 | 104 | 106 | 109 | 3.7 | 4.2 | 5 | 8 | ±120 |
Other types hose
1.Steel wire braided hydraulic hose
SAE 100 R1 AT / DIN EN853 1SN
SAE 100 R2 AT / DIN EN853 2SN
DIN EN857 1SC
DIN EN857 2SC
SAE 100 R16
SAE 100 R17
SAE 100 R5
2.Steel wire spiral hydraulic hose
DIN EN856 4SP
DIN EN856 4SH
SAE 100 R12
SAE 100 R13
SAE 100R15
3.Textile braided hydraulic hose
SAE 100 R3
SAE 100 R6
4.Rubber resin hose
SAE 100 R7 / DIN EN855 R7
SAE 100 R8 / DIN EN855 R8
5.Steam hose
Wire braided steam hose
6.PTFE Hose
SAE 100 R14
Welcome inquiry to us, and there must be one production can meet you! Let'e be friends.
|
|
