| Ask Lasest Price | |
| Brand Name : | FOR |
| Certification : | ISO 9001：2008 |
| Model Number : | mine air hose |
| Price : | 0.25USD per meter |
| Delivery Time : | According to the order |
| Payment Terms : | T/T, L/C, West Union, Paypal ect |
| Supply Ability : | 1000 meter per day |
1. Excellent and stable quality of mining air hose.
2. Factory price
3. Good and professional pre- and after-sales service
Fabric reinforced high pressure air rubber hose information:

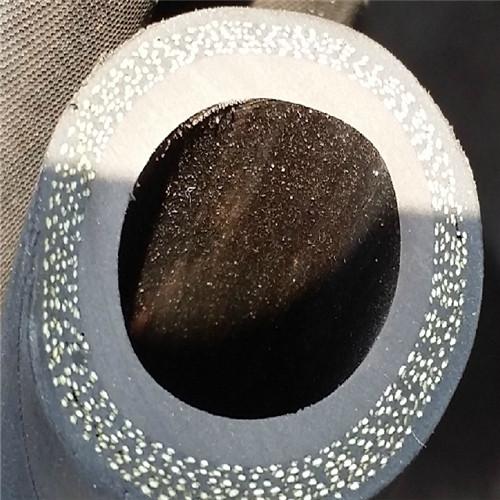

Structure: This hose consists of an inner tube layer, fabric reinforcement and synthetic rubber cover.

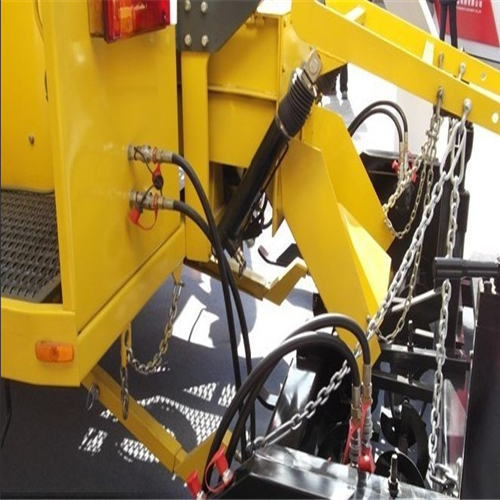

Application: Apply to deliver compressed gas and inert gas in mining area, factory and civil engineering.
Feature: This hose has high performance gas tight, excellent weatherproof property and abrasion
character.
| DN(mm) | Working Pressure Mpa(kgf/cm²) | Reference O.D. (mm) | Reference Weight (kg/m) | Length | ||||||||
| 0.59(6) | 0.78(8) | 0.98(10) | ||||||||||
| Size | Tolerance | Fabric Layers | m | Tolerance(mm) | ||||||||
| 13 | ±0.8 | 2 | 3 | 4 | 22 | 23 | 24 | 0.37 | 0.41 | 0.45 | 20 | ±200 |
| 16 | ±0.8 | 3 | 4 | 5 | 26 | 27 | 28 | 0.48 | 0.53 | 0.58 | ||
| 19 | ±0.8 | 3 | 4 | 5 | 29 | 30 | 31 | 0.57 | 0.63 | 0.7 | ||
| 22 | ±0.8 | 2 | 3 | 4 | 32 | 33 | 34 | 0.59 | 0.66 | 0.73 | ||
| 25 | ±0.8 | 3 | 4 | 5 | 37 | 39 | 40 | 0.84 | 0.91 | 1 | ||
| 32 | ±1.2 | 3 | 4 | 5 | 44 | 46 | 47 | 1 | 1.1 | 1.2 | ||
| 38 | ±1.2 | 3 | 4 | 5 | 50 | 51 | 52 | 1.3 | 1.4 | 1.6 | ||
| 45 | ±1.2 | 3 | 4 | 5 | 57 | 58 | 59 | 1.5 | 1.7 | 1.8 | ||
| 51 | ±1.2 | 3 | 4 | 5 | 63 | 64 | 65 | 1.7 | 1.8 | 2.2 | ||
| 64 | ±1.5 | 4 | 5 | 6 | 77 | 78 | 80 | 2.3 | 2.5 | 2.7 | ||
| 76 | ±1.5 | 4 | 6 | 7 | 90 | 91 | 93 | 2.6 | 3.2 | 3.5 | ||
| 89 | ±1.5 | 5 | 7 | 9 | 104 | 106 | 109 | 3.7 | 4.2 | 5 | 8 | ±120 |
| 102 | ±2.0 | 6 | 8 | 10 | 118 | 121 | 123 | 4.5 | 5.2 | 5.9 | ||
| 127 | ±2.0 | 7 | 9 | - | 144 | 147 | - | 5.9 | 6.9 | - | ||
| 152 | ±2.0 | 8 | - | - | 171 | - | - | 7.3 | - | - | ||
Welcome to inquiry us, we will give you best price and production for you. Just for your forever supplier.
|
|
