| Brand Name : | FOR |
| Certification : | ISO 9001 |
| Model Number : | HY-001 |
| Price : | 0.25USD per meter |
| Delivery Time : | within one month after accept the payment(one container) |
| Payment Terms : | T/T, L/C, West Union, Paypal ect |
| Supply Ability : | 1000 meter per day |

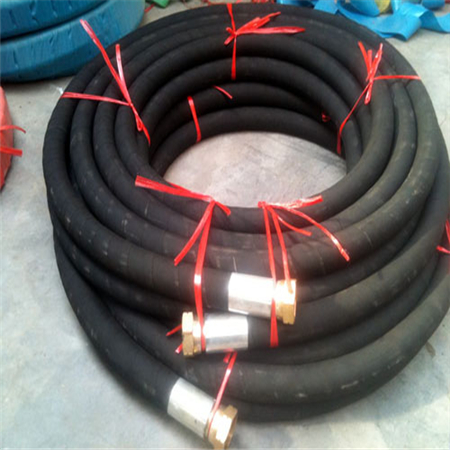

| Product:High-pressure air tube | |
| Detail: | |
Details of Rubber Air Hose: 1.Tube: NR & SBR synthetic rubber, black color. 2.Reinforcement: High tensile synthetic yarn braided or spiraled. 3.Cover: NR & NBR synthetic rubber. 4.Characteristics: Abrasion resistant, weather resistant and zone resistant. Its of pressure bearable, flexible, light in weight, anti-bending, less distortion and nice smooth surface. 5.Temperature range: -40ºC to +100 ºC. |
(Hose ID) | (Wire OD) | (Hose OD) | (WorkingPressure) | (Burst Pressure) | Layers | (Minimum bend radius) | |||
|---|---|---|---|---|---|---|---|---|---|
inch | mm | mm | mm | Mpa | Psi | Mpa | Psi | 5-8 | mm |
3/8 | 9.5 | 17.5 | 21 | 2 | 2900 | 4.5 | 6450 | 5-10 | 180 |
1/2 | 12.7 | 20.2 | 24 | 2 | 2900 | 4.1 | 6000 | 5-10 | 230 |
5/8 | 15.9 | 23.8 | 28.2 | 2 | 2900 | 3.5 | 5000 | 5-10 | 250 |
3/4 | 19.0 | 28.2 | 32.2 | 2 | 2900 | 3.5 | 5000 | 5-10 | 300 |
1 | 25.4 | 35.5 | 39.7 | 2 | 2900 | 3.5 | 5000 | 5-10 | 340 |
1-1/4 | 31.8 | 46 | 50.8 | 2 | 2900 | 3.5 | 5000 | 5-10 | 460 |
1-1/2 | 38.1 | 52.4 | 57.7 | 2 | 2900 | 3.5 | 5000 | 5-10 | 560 |
2 | 50.8 | 65.3 | 69.6 | 2 | 2900 | 3.5 | 5000 | 5-10 | 660 |
Note: This is our main productions, custom-made also can be accepted.
